Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Haiwei
  • Model Number: H8
  • Input: 1Channel HDMI input, 1 Channel 3.5MM channel audio input
  • Output: 1 channel IP signal
  • Coding standard: H.264
  • Encoded size: 640*360~1920*1080(Can customize)
  • Video bit rate: CBR/VBR 16KBIT/S~12MBIT/S
  • Network protocol: HTTP, RTSP, RTMP, UDP, multicast, unicast
  • Power supply: 12V~2A
  • power: 5W
  • Weight: 0.4KG
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Containers: by sea .by air or as customer need.

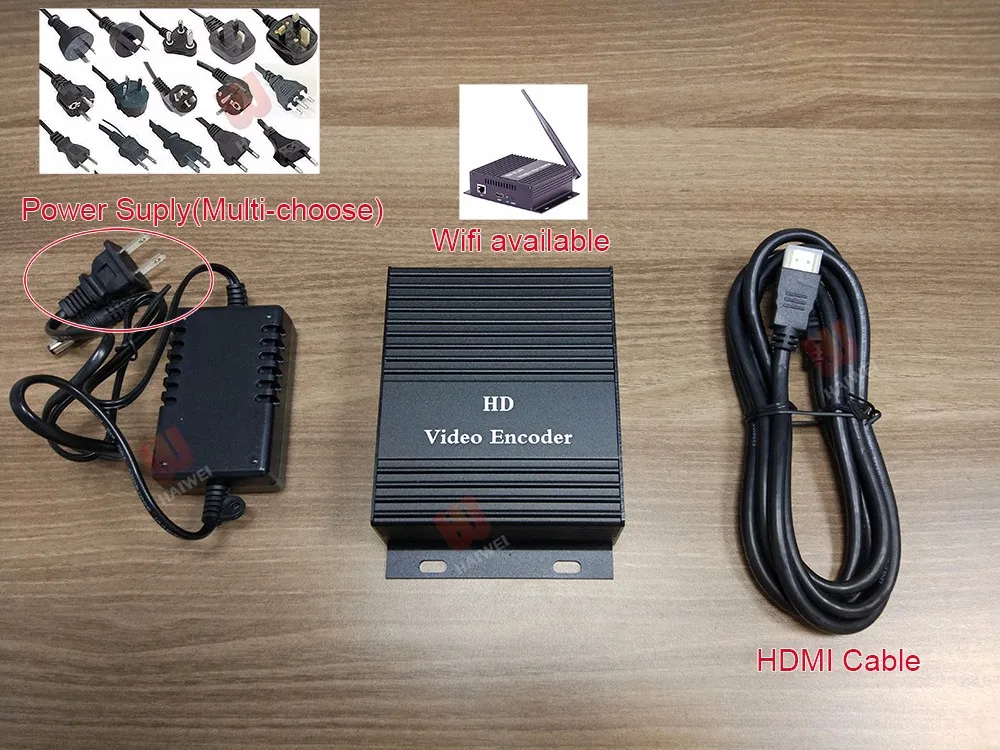

Package Type:packed in carton; 1pcs/carton; with one power adapter and manual
Single gross weight:0.5KG(Including the encoder,power cable and HDMI cable)
Single package size: 150*100*40mm
Delivery Time 1-5days
Related Products


HW-H8 H.265 portable 3G/4G Wifi Lithium HD MI Encoder for point-point transmission



H8 HDMI+ BATTERY+ WIFI video encoder:



1: Input: 1 channel HDMI, 1 channel  Line-in Audio, audio format: MP3 / AAC/ G711.

2: Output: Dual streaming( Main stream: UP to 1080P 60, Sub stream: UP to 720P 60)

3: Frequency: TDD, FDD, LTE, WCDMA, TD-LTE, etc

4: Bit rate: Video: CBR/ VBR, 16kb-12Mbit/s;              Audio: 64kb/s-384kbs

5: Protocol: HTTP/ RTSP/ RTMP/ ONVIF/ RTP/ TCP/ HLS/ UDP( Unicast/ multicast).

6: Video packaging: FFMPEG/ VLC

7: Available image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering





Product model

H8 3G/4G HDMI+ Wifi+ battery Encoder

Input

1Channel HDMI input, 1 Channel audio input

Output

1 channel IP signal output

Video

Input resolution

1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc.

Coding standard

H.265/H.264

Coding level

H.265 main profile

   H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE



Encoded size

640*360~1920*1080(Can customize)

Video bit rate

Rate control: CBR/VBR 16KBIT/S~12MBIT/S

Video frame rate

1-60

OSD

Character, images

Audio

Input selection

1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain

Audio coding

AAC/MP3

Audio bit rate

64Kb/s~384Kb/s

Sampling rate

32000,44100,48000 etc

IP

Output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol

System

Network protocol

Supports HTTP, RTSP, RTMP, UDP, ONVIF, HLS, multicast, unicast

Configuration management

Support IE configuration, remote upgrade



Power supply

12V~2A

power consumption

5W

Size

103mm * 70mm * 25mm(L*W*H)

Operating temperature

-20+ 60

Working humidity

<90%,Non-condensing

Weight

0.4KG

Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check



User interface( sample)

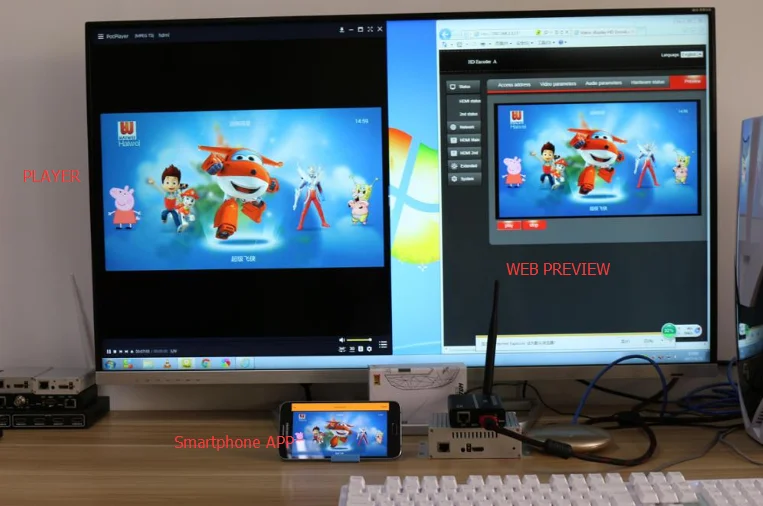

Product Uses

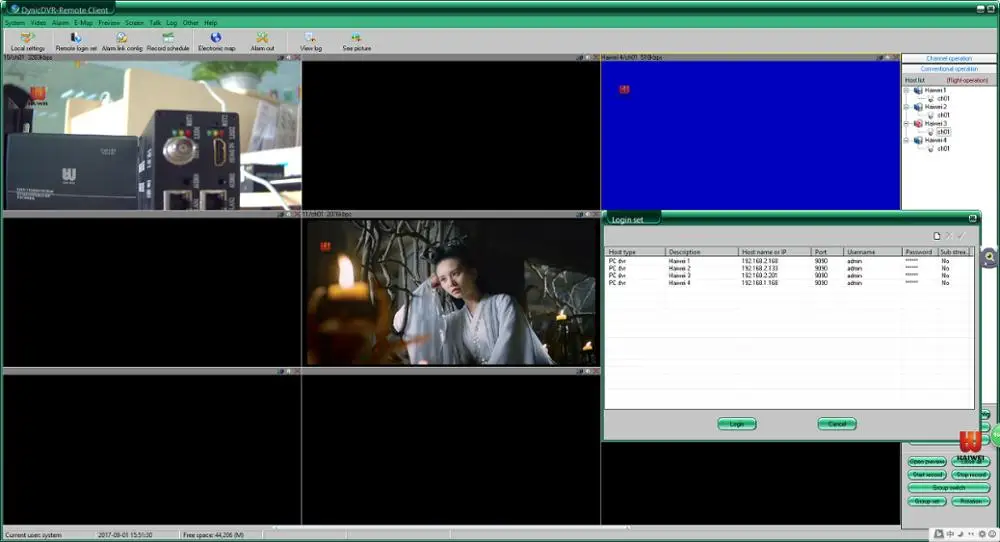

Multi devices to one screen software power by Haiwei

2. Web preview, Smartphone APP( Andriod)



Applications:

1)  IPTV/ WEB TV

2)  NVR/ Ssurveillance

3) Digital signage

4) video conference

5) Broadcasting

6) Instead of HD video capture card

7) Hotel CATV system

8) Mobile live system

9) Oline classroom system

Packaging& Shipping

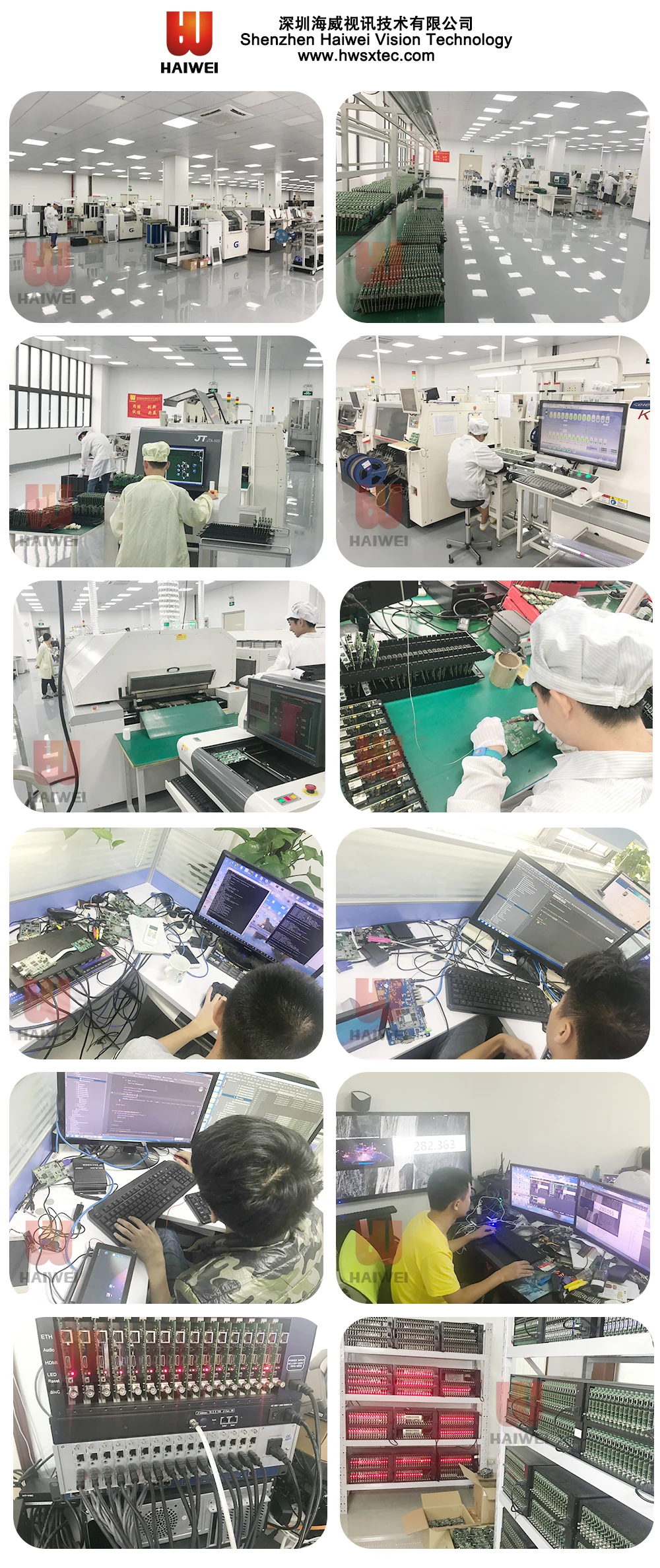

About Haiwei



Shenzhen Haiwei Vision is a professional high-tech company, which specializes in R&D, design, manufacture, sale and provide tech support of a series of Audio& Video hardware include HDMI, SDI, VGA, CVBS, YPBPR video encoder, 3G/4G/Wi-Fi video encoder. We are the innovator of the streaming industry.





Haiwei on Linkedin:    www.linkedin.com/company/shenzhen-haiwei-vision-tec-co.-ltd

Haiwei Ofiicial web:    www.hwsxtec.com/?_l=en





FAQ
Q1:What is your Payment Terms?

A1:We accept T/T Bank Transfer,Paypal ,Western Union,L/C,Alipay, Alibaba Trade Assurance,Unistream all major credit cards are accepted through secure payment processor ESCROW.



Q2:Do you support OEM?

A2:we can provide OEM service by replacing your company logo on Shell, software interface and carton.



Q3: Where is your Factory/company located?

A3:Haiwei Factory/company :

605~609 B Building HuaFeng Financial Harbour Xinan 6 Road Baoan 82 District Shenzhen City Guangdong Province China

Haiwei Guanzhou Branch:

Room 403, Linglanduhui, NO18 Huaying road, Northern Airport Road, Jiahewanggang, Baiyun district, Guangzhou City Guangdong Province China



A5:

Q4: What about your Warranty?

A4:All products has 2 years’ warranty, we offer technical supports online/phone/send back, repair services by our experienced after-sales specialist, free charge within warranty.And provide Lifetime free technical supports.



Q5:How to contact us:

Hansen
E: hansen(at)hwsxtec.com
T:+86 15602202570 | F:+86 (0)20-36164006
Web: www.hwsxtec.com/?_l=en
Shenzhen Haiwei Vision Technology

Address: Shenzhen head office (Factory): Room 605~609, Huafeng financial harbor, Building B, XinAn 6th Road, Baoan 82rd District,  Shenzhen, China

Guangzhou (Business center): Room 403, Linglanduhui, NO18 Huaying road,  Jiahe Wanggang, Baiyun district, Guangzhou, China
